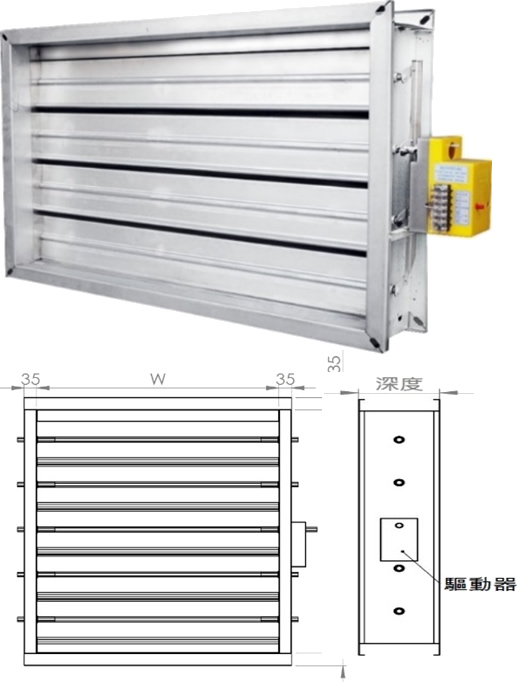

Motorized Damper / Motorized Fire Damper Model: CMD-01 / CMD-01F

Electric gate model: CMD-01

AMCA/UL low leakage rating
3V blades. Parallel opening
Stainless steel airtight shrapnel

Electric blind model: CMDX-001

Aluminum alloy frame, beautiful and elegant
Aluminum alloy blades, open in parallel
Surface powder paint: Lily white

Customized specifications according to needs

CMD-01

Frame leaves	Galvanized steel T1.2 mm
Maximum single group	1000*1000 mm

CMDX-001

Frame leaves	Aluminum alloy composite blades, overall thickness 12mm
Maximum single group	1500*1500mm
